The right local exhaust ventilation (LEV) system for your workshop depends on three key factors: the type of work you do, the contaminants you need to control, and compliance requirements under New Zealand health and safety regulations. Welding, for example, creates hazardous fumes that must be captured at the source to protect workers and meet WorkSafe NZ standards. An effective LEV system removes these fumes before they spread, keeping your team safe and your business compliant.

In this guide, we’ll compare the main options available for welding fume extraction in New Zealand workshops, outline the regulations you need to know, and explain how to select the best LEV solution for your specific environment.

It’s surprising how often this one trips people up.

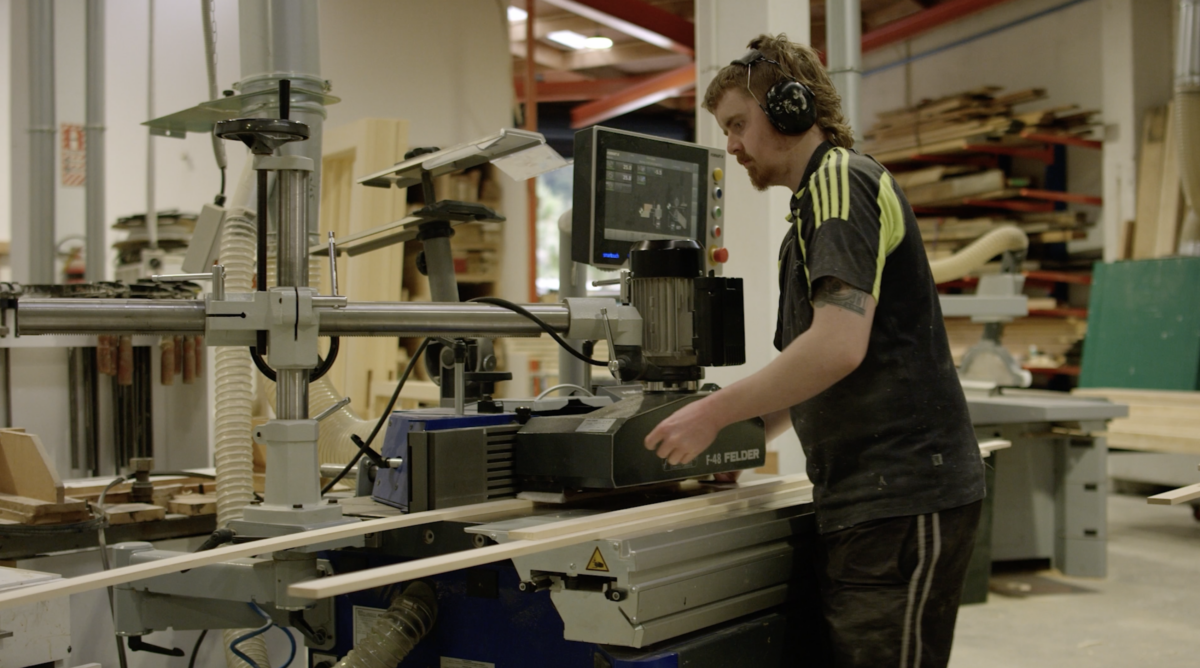

One client came to us after installing a brand-new dust extraction system using standard dust cartridge filters for their woodworking shop. The result? Blocked filters, poor airflow, and constant cleaning. Why? Because while cartridge filters are ideal for fine particulate matter—like what you get in fume hoods, spray paint booths, or silica dust—they’re a poor match for bulky wood dust.

For woodworking, a better solution is a dust collector cartridge filter with antistatic flexi-media sleeves. These are designed to handle larger debris without clogging—restoring airflow and extending the life of the system. Once we switched them over, the results were immediate. Clean air. Smooth operation. Happy client.

Whether you’re working with extraction arms, dust extraction hoods, or fume extraction vacuums, the key is to match your filter media to your dust type. Fine, sticky, wet, dry, combustible—each requires a different approach.

Always ask your supplier whether the filter media suits your specific material. It could be the difference between nonstop maintenance and a system that just works.

There are several types of local exhaust ventilation systems available to provide respiratory protection, each suited to different workshop setups:

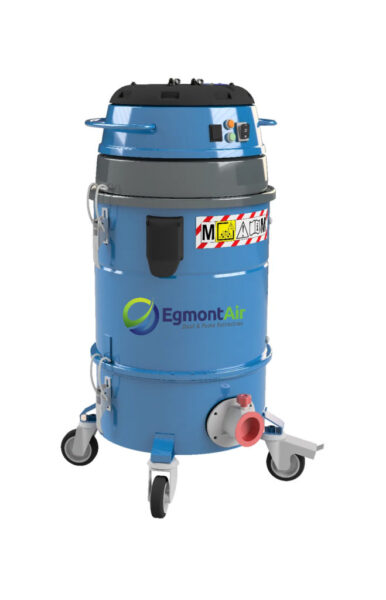

• Welding fume extractor – a portable or fixed unit designed to capture and filter fumes.

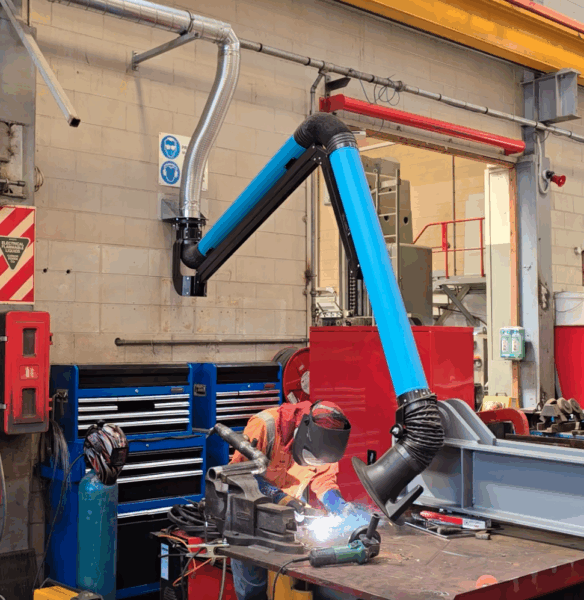

• Welding fume extractor arm – a flexible, adjustable arm that can be positioned close to the weld for effective fume capture, to help avoid exposure to welding fumes.
• On-torch welding extraction – integrated into the welding torch, this system extracts fumes directly at the point of generation, ensuring there is no contaminated air. An excellent solution for use in confined spaces as it removes contaminants at the source.
• Welding fume collector – often larger, centralised units that filter and collect welding fumes from multiple workstations.
• Local exhaust ventilation hood – this capturing hood captures fumes at a distance, often used where other methods are impractical.

Note: Push-Pull Ventilation and other General Ventilation systems may provide air-exchange and prevent accumulation of fumes in the workshop, but they do not provide Local Exhaust Ventilation and therefore are excluded from this article. They do not protect the worker or other employees working in the same vicinity.

When selecting an option, it’s important to consider how the equipment fits into your existing local exhaust ventilation design, as well as the mobility and efficiency needed in your workshop. Below is a framework for how our team calculates the right LEV solution for you

Our team calculates it using the Local Exhaust Ventilation (LEV) formula, which determines the airflow required to effectively capture welding fumes at the source. We apply this formula to every project to ensure your system is powerful enough to protect workers while remaining energy-efficient and compliant with New Zealand safety standards.

The Local Exhaust Ventilation Calculation Formula

The basic formula is:

Q=V×AQ = V \times AQ=V×A

Where:

• Q = airflow (m³/s or CFM)
• V = capture velocity (m/s) – typically 0.5–2.5 m/s for welding
• A = area of the hood opening (m²)

Example:
If your local exhaust ventilation hood has an opening area of 0.2 m² and requires a capture velocity of 1.0 m/s, then:

Q=1.0×0.2=0.2 m³/sQ = 1.0 \times 0.2 = 0.2 \, \text{m³/s}Q=1.0×0.2=0.2m³/s

That means your system needs to deliver at least 0.2 m³/s (≈ 425 CFM) at the hood face. This calculation is critical to ensure fumes are pulled into the local exhaust ventilation system, rather than drifting into the welder’s breathing zone.

Local exhaust ventilation cost can vary widely depending on the type of system installed, the size of the workshop, and the complexity of the ducting or extraction design. While upfront costs can seem significant, it’s important to weigh them against compliance with WorkSafe welding requirements., reduced worker health risks, and improved productivity through a cleaner, safer environment. Ultimately, investing in the right LEV system saves money in the long run.

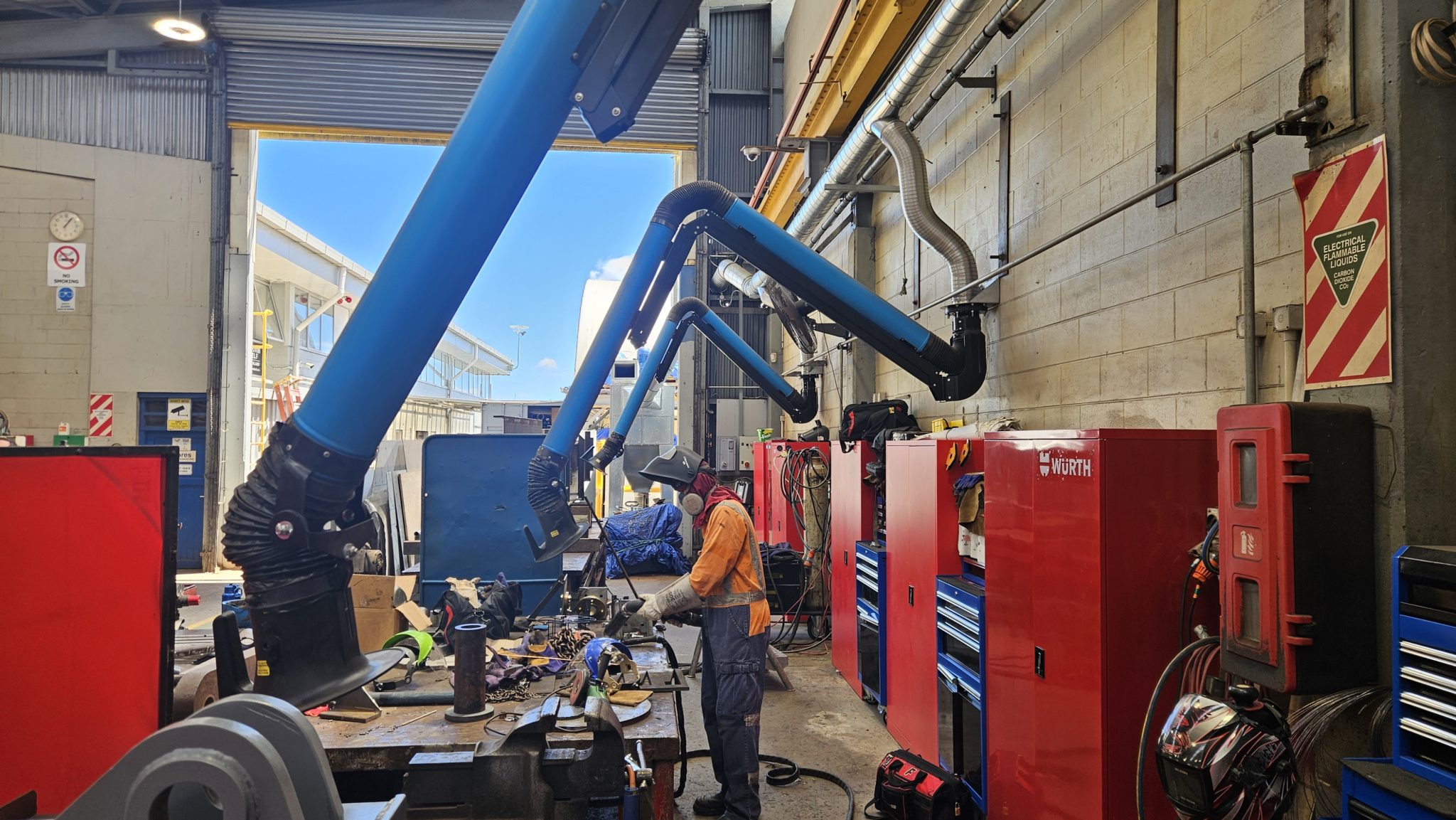

Weighing up these considerations played a key role in Titan Marine’s decision to reach out to us for a ‘capture at source’ solution. We installed an Evolution Extraction Arm connected to a centralised extraction system, and Ram Parshu, Fabrication Supervisor, was very satisfied with the outcome.

“We’re very pleased with the way Egmont Air came in, did all the calculations and worked out the layout of the workshop, and then took all of our feedback and how or what process we were doing, what sort of welding process and all that. Then they went back and did their homework and came back with a perfect result.”

You can read more about our LEV solution for this project here.
